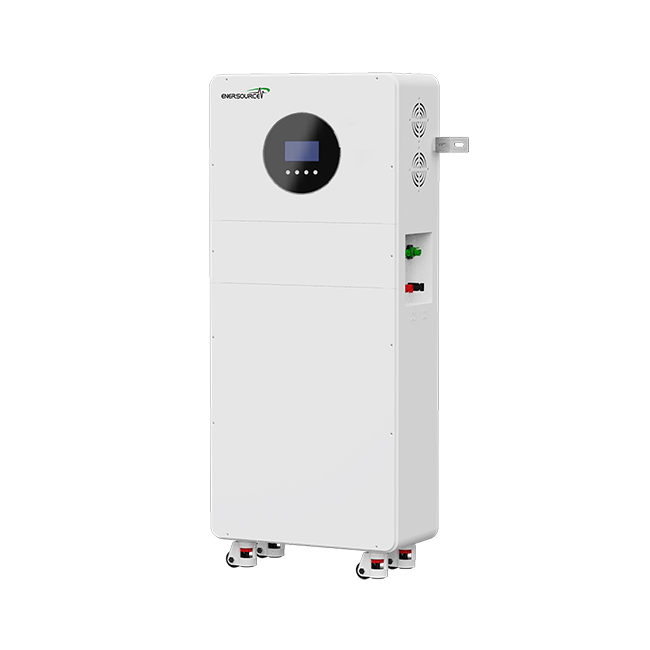

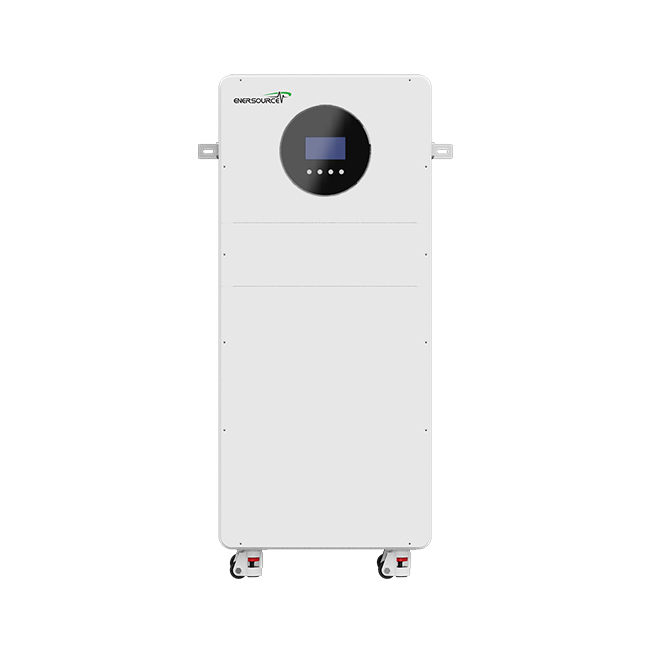

AIO-EN6K-10A
Enersource
| Model | AIO-EN6K-05 | AIO-EN6K-10A | AIO-EN6K-15 | |||
| Inverter | ||||||
| Rated output power | 6kW | |||||
| Grid type | Off-Grid | |||||
| Phase | Single-Phase | |||||
| Frequency | High Frequency | |||||
| Output waveform | Pure sine wave | |||||
| Transfer time | 10ms typical | |||||
| PV Maximum input power | 6000W | |||||
| Max. PV open circuit voltage | 500VDC | |||||
| MPPT voltage range | 60-450VDC | |||||
| MPPT tracker/strings | 1/1 | |||||
| Max. input current | 27A | |||||
| Max. PV charge current | 120A | |||||
| Max. AC charge current | 100A | |||||
| Grid voltage range | 220/230/240VAC | |||||
| Rated grid frequency | 50Hz/60Hz (auto sensing) | |||||
| Charging and discharging efficiency | >93% | |||||
| Battery | ||||||
| Nominal voltage | 51.2V | |||||
| Nominal capacity | 100Ah | 200Ah | 300Ah | |||
| Battery energy | 5.12kWh | 10.24kWh | 15.36kWh | |||
| Max. charge and discharge current | 100A | 150A | 150A | |||
| Battery chemistry | Lithium Iron Phosphate (LiFePO4) | |||||
| Cycle life | >10000 cycles | |||||
| BMS | OVP, UVP, OCP, SCP, OTP, UTP, etc. | |||||
| General data | ||||||
| Display | LCD screen | |||||
| Cooling method | Natural cooling | |||||
| Design lifespan | >15 years @25℃ | |||||
| Operation condition | Charge:0℃~45℃, Discharge:-20℃~60℃, Storage:0℃~40℃, Humidity:≤85% RH | |||||
| Communication interface | CAN/RS485/WiFi | |||||
| Enclosure protection level | IP20 | |||||
| Dimensions W*D*H mm | 433*127*1037 | 485*237*1081 | 485*237*1225 | |||
| Weight KG | 68 | 105 | 138 | |||
| Installation method | Floor standing & wall mount | |||||
| Cell certification | CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3 | |||||
| Battery certification | CE, UN38.3, MSDS, DG shipping doc. | |||||
