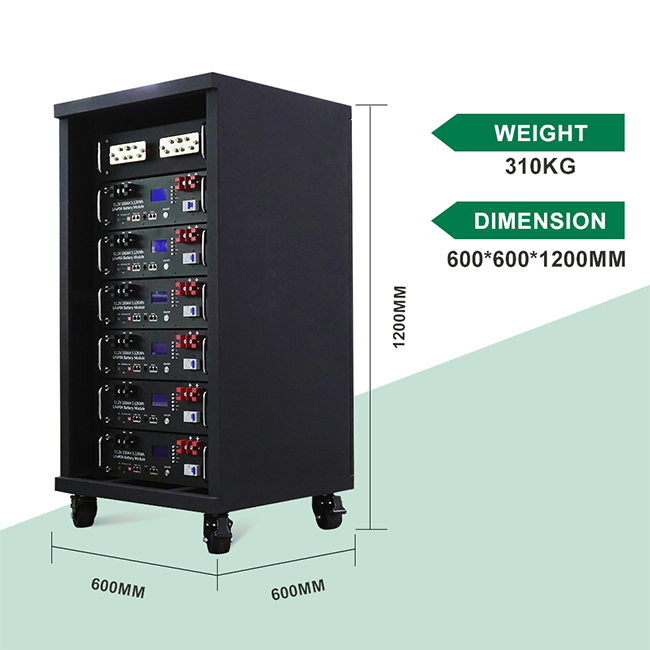

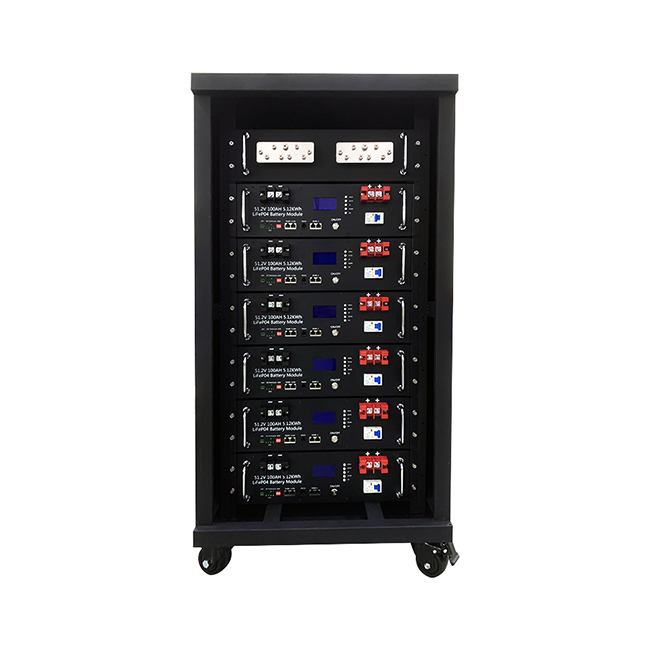

Rack-Mounted Cabinet 51.2V 400-600Ah

Rack-mounted cabinet is the ideal solution for residential, commercial and industrial storage systems, with standard 19-inch rack mount batteries in a variety of voltages and capacities for big demand of electricity usage such as big houses, telecom centers, hotels and office buildings.

Features：

Plug and play, easy to install and maintain
Reliable LFP chemistry for greater safety
Good high & low temperature performance
Full capacity for high discharge rate
High energy density and conversion efficiency
Compatible with mainstream inverters
Smart BMS provides multiple protections
Support 15 units in parallel for more energy
LCD screen, Bluetooth & WiFi (optional)


Availability:



Inquire

Model:
RMC05-20/25/30K
Brand:
Enersource

Model	RMC05-20K	RMC05-25K	RMC05-30K
Number of modules	4	5	6
Nominal voltage	51.2V
Nominal capacity	400Ah	500Ah	600Ah
Energy capacity	20.48kWh	25.6kWh	30.72kWh
Max. charge current	400A	500A	600A
Max. discharge current	400A	500A	600A
Internal Resistance	≤60mΩ
Months self discharge	<3%
Efficiency of charge	100% @0.2C
Efficiency of discharge	96~99% @1C
Charge voltage	58.4±0.2V
Charge cut-off voltage	58.4±0.2V
Discharge cut-off voltage	40V

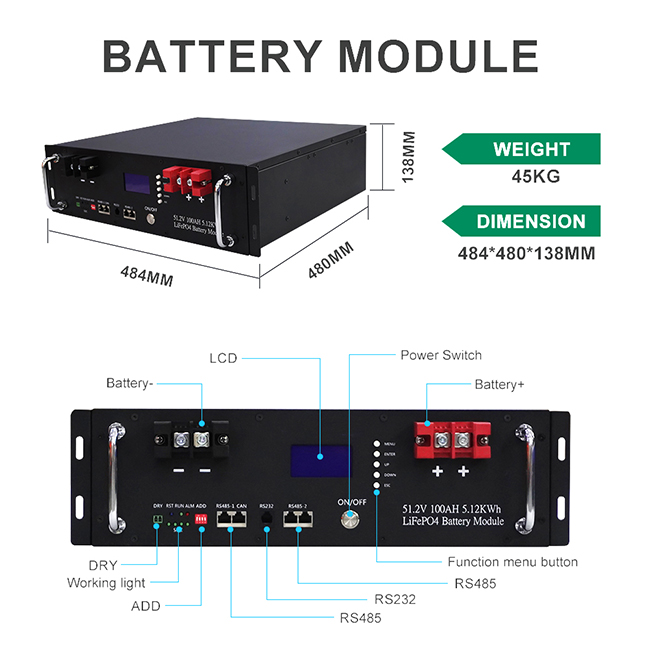

Battery Module
Nominal voltage	51.2V
Nominal capacity	102Ah
Battery energy	5.12kWh
Battery chemistry	Lithium Iron Phosphate (LiFePO4)
Cycle life	>10000 cycles
Dimension WDH mm/weight KG	484480138/45
General Data
LCD display	LCD screen
Cooling method	Natural cooling
Operation condition	Charge:0℃~45℃, Discharge:-20℃~60℃, Storage:0℃~40℃, Humidity:≤85% RH
Communication	DRY/RS485/CAN/RS232/Bluetooth & WiFi (optional)
BMS	OVP, UVP, OCP, SCP, OTP, UTP, etc.
Installation method	Rack mount
Enclosure protection level	IP20
Dimensions WDH (mm)	600600920	6006001060	6006001200
Weight (KG)	215	260	310
Cell certification	CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3
Battery certification	CE, UN38.3, MSDS, DG shipping doc.
