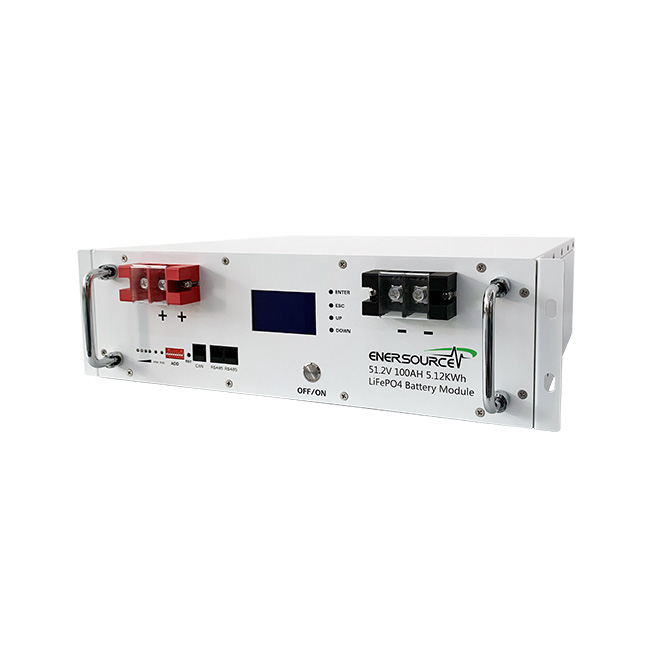

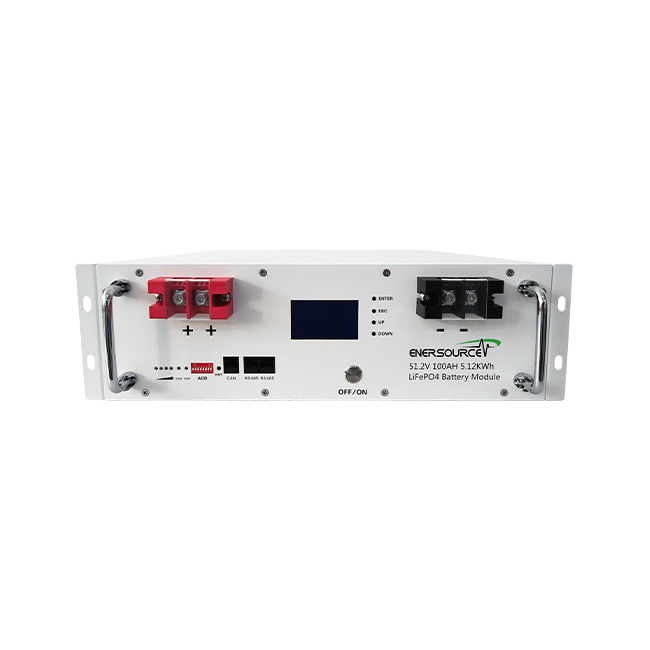

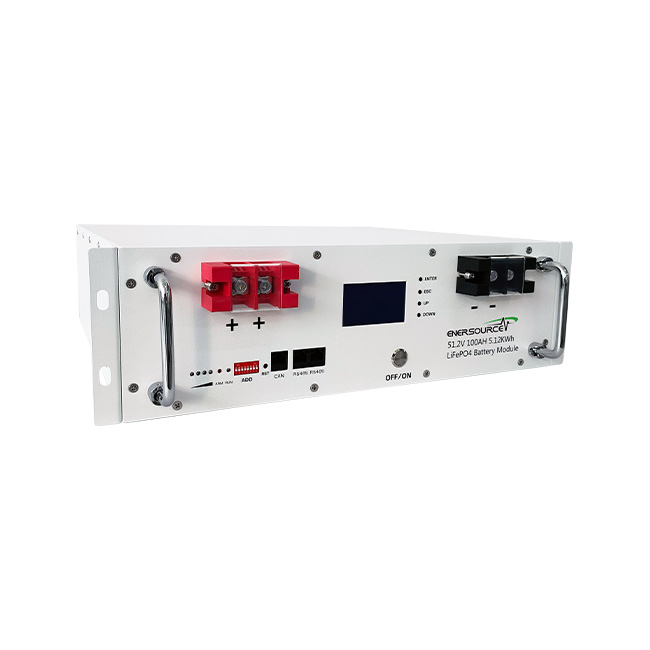

Rack-Mounted Battery 51.2V 100Ah

Rack-mounted battery is an ideal solution for residential and industrial storage systems with standard 19-inch racks in a variety of voltages and capacities for wide range of applications.

Features：

Plug and play, easy to install and maintain
Reliable LFP chemistry for greater safety
Good high & low temperature performance
High energy density and conversion efficiency
Compatible with mainstream inverters
Smart BMS provides multiple protections
Support 15 units in parallel for more energy
LCD screen, Bluetooth & WiFi (optional)


Availability:



Inquire

Model:
RM-51100
Brand:
Enersource

Model	RM-51100
Electrical Characteristics
Nominal voltage	51.2V
Nominal capacity	100Ah
Energy	5.12kWh
Internal resistance	≤30mΩ
Design lifespan	>15 years
Battery chemistry	Lithium Iron Phosphate (LiFePO4)
Cycle life	>10000 cycles
Months self discharge	<3%
Efficiency of charge	100% @0.2C
Efficiency of discharge	96~99% @1C
Charge Data
Charge voltage	58.4±0.2V
Charge mode	CC@0.2C to 58.4V, then CV till current to 0.05C
Standard charge current	20A
Max. charge current	100A
Charge cut-off voltage	58.4±0.2V
Discharge Data
Max. discharge current	100A
Discharge cut-off voltage	40V
Working Condition
Charge temperature	0℃ to 45℃ (32F to 113F) @60±25% Relative Humidity
Discharge temperature	-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage temperature	0℃ to 40℃ (-4F to 104F) @60±25% Relative Humidity
Mechanical Data
Display	LCD Screen
Scalability	Parallel up to 15 units
Communication	DRY/RS485/CAN/RS232/Bluetooth & WiFi (optional)
BMS	OVP, UVP, OCP, SCP, OTP, UTP, etc.
Case	Iron case
Enclosure protection level	IP20
Dimensions WDH (mm)	484480180
Weight (KG)	45
Cell certification	CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3
Battery certification	CE, UN38.3, MSDS, DG shipping doc.
