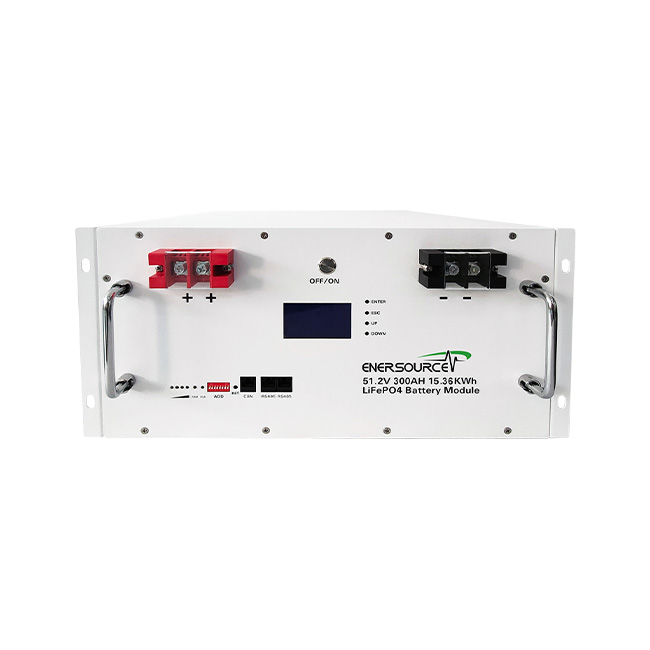

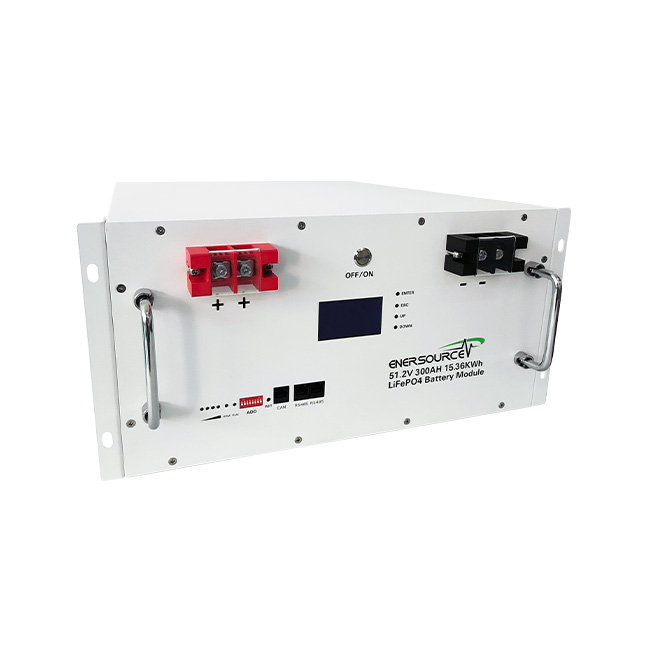

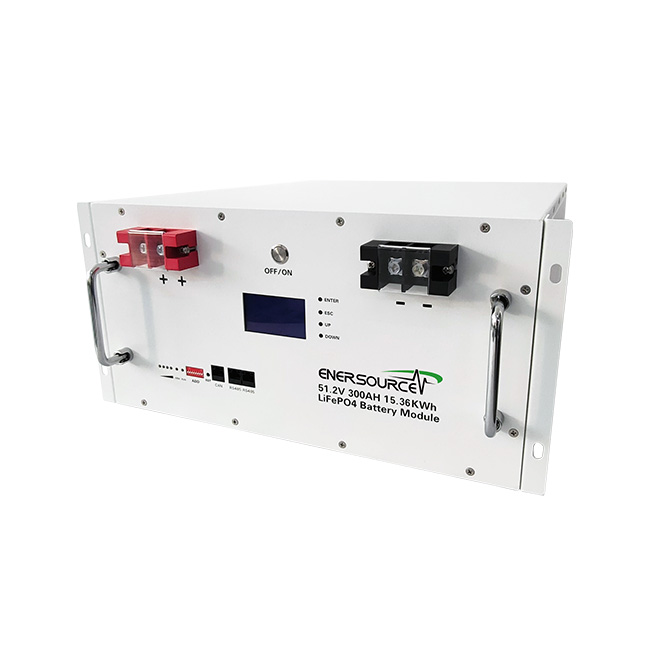

Rack-Mounted Battery 51.2V 300Ah/314Ah

Rack-mounted battery is an ideal solution for residential and industrial storage systems with standard 19-inch racks in a variety of voltages and capacities for wide range of applications.

Features：

Plug and play, easy to install and maintain
Reliable LFP chemistry for greater safety
Good high & low temperature performance
High energy density and conversion efficiency
Compatible with mainstream inverters
Smart BMS provides multiple protections
Support 15 units in parallel for more energy
LCD screen, Bluetooth & WiFi (optional)


Availability:



Inquire

Model:
RM-51300/314
Brand:
Enersource

Model	RM-51300	RM-51314
Electrical Characteristics
Nominal voltage	51.2V
Nominal capacity	300Ah	314Ah
Energy	15.36kWh	16.077kWh
Internal resistance	≤30mΩ
Design lifespan	>15 years
Battery chemistry	Lithium Iron Phosphate (LiFePO4)
Cycle life	>10000 cycles
Months self discharge	<3%
Efficiency of charge	100% @0.2C
Efficiency of discharge	96~99% @1C
Charge Data
Charge voltage	58.4±0.2V
Charge mode	CC@0.2C to 58.4V, then CV till current to 0.05C
Standard charge current	40A
Max. charge current	200A
Charge cut-off voltage	58.4±0.2V
Discharge Data
Max. discharge current	200A
Discharge cut-off voltage	40V
Working Condition
Charge temperature	0℃ to 45℃ (32F to 113F) @60±25% Relative Humidity
Discharge temperature	-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage temperature	0℃ to 40℃ (-4F to 104F) @60±25% Relative Humidity
Mechanical Data
Display	LCD Screen
Scalability	Parallel up to 15 units
Communication	DRY/RS485/CAN/RS232/Bluetooth & WiFi (optional)
BMS	OVP, UVP, OCP, SCP, OTP, UTP, etc.
Case	Iron case
Enclosure protection level	IP20
Dimensions WDH (mm)	484600225
Weight (KG)	100	102
Cell certification	CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3
Battery certification	CE, UN38.3, MSDS, DG shipping doc.
