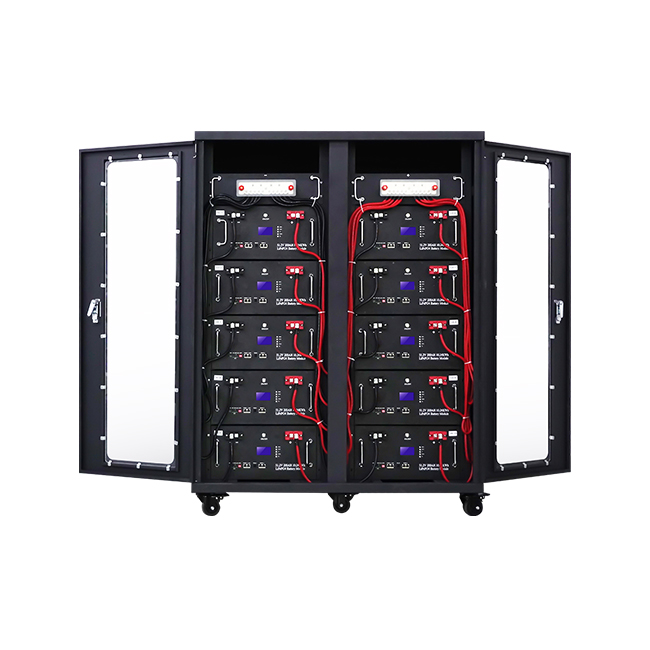

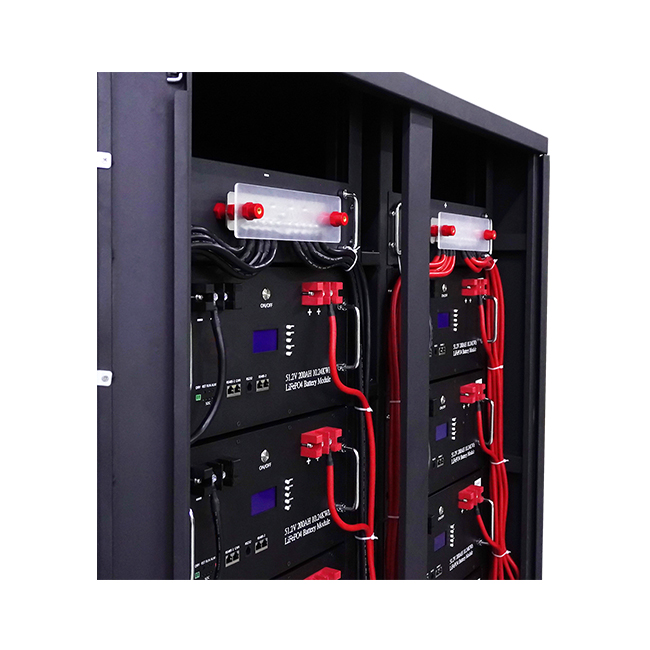

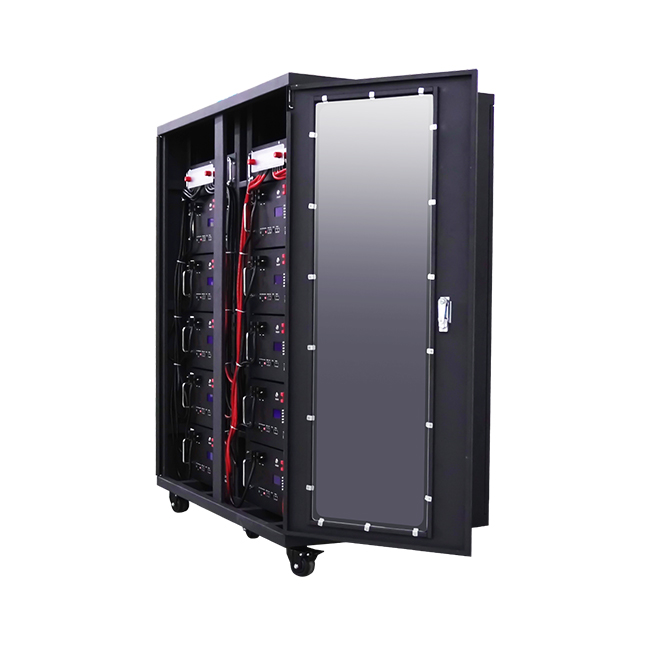

Rack-Mounted Cabinet 51.2V 1600-2000Ah

Rack-mounted cabinet is the ideal solution for residential, commercial and industrial storage systems, with standard 19-inch rack mount batteries in a variety of voltages and capacities for big demand of electricity usage such as big houses, telecom centers, hotels and office buildings.

Features：
  • Plug and play, easy to install and maintain
  • Reliable LFP chemistry for greater safety
  • Good high & low temperature performance
  • Full capacity for high discharge rate
  • High energy density and conversion efficiency
  • Compatible with mainstream inverters
  • Smart BMS provides multiple protections
  • Support 15 units in parallel for more energy
  • LCD screen, Bluetooth & WiFi (optional)
Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • RMC10-80/90/100K

  • Enersource



ModelRMC10-80KRMC10-90KRMC10-100K
Number of modules8910
Nominal voltage51.2V
Nominal capacity1600Ah1800Ah2000Ah
Energy capacity81.92kWh92.16kWh102.4kWh
Max. charge current1600A1800A2000A
Max. discharge current1600A1800A2000A
Internal Resistance≤60mΩ
Months self discharge<3%
Efficiency of charge100% @0.2C
Efficiency of discharge96~99% @1C
Charge voltage58.4±0.2V
Charge cut-off voltage58.4±0.2V
Discharge cut-off voltage40V

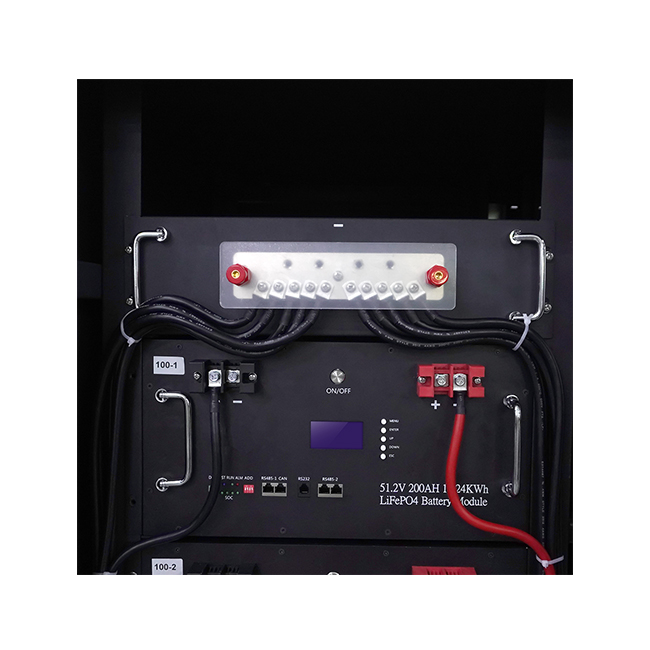

Battery Module
Nominal voltage51.2V
Nominal capacity200Ah
Battery energy10.24kWh
Battery chemistryLithium Iron Phosphate (LiFePO4)
Cycle life>10000 cycles
Dimension W*D*H mm/weight KG484*480*225/78
General Data
LCD displayLCD screen
Cooling  methodNatural cooling
Operation conditionCharge:0℃~45℃, Discharge:-20℃~60℃, Storage:0℃~40℃, Humidity:≤85% RH
CommunicationDRY/RS485/CAN/RS232/Bluetooth & WiFi (optional)
BMSOVP, UVP, OCP, SCP, OTP, UTP, etc.
Installation methodRack mount
Enclosure protection levelIP20
Dimensions W*D*H (mm)1200*800*14001200*800*16001200*800*1600
Weight (KG)680765840
Cell certificationCE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3
Battery certificationCE, UN38.3, MSDS, DG shipping doc.


download Rack-Mounted Cabinet 51.2V 80-100kWh.pdf

Previous:
Next:
low voltage rack mount cabinet 48v 51.2v 1600ah 1800ah 2000ah huge capacity high current output stable and reliable low internal resistance solar renewable green energy helps you reduce your electricity bills

Related Products

Rack Mount Cabinet 51.2V 400-600Ah
Rack-Mounted Cabinet 51.2V 400-600Ah
Rack Mount Battery 51.2V 300Ah
Rack-Mounted Battery 51.2V 300Ah/314Ah
Rack Mount Battery 51.2V 200Ah

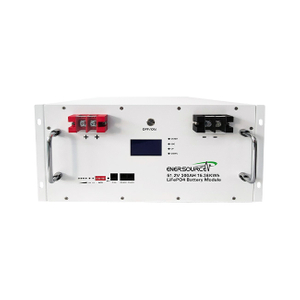

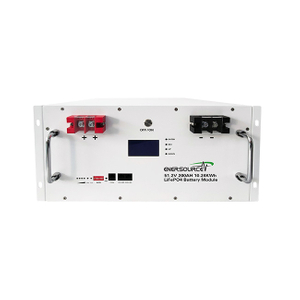

Rack-Mounted Battery 51.2V 200Ah
Rack Mount Battery 51.2V 100Ah

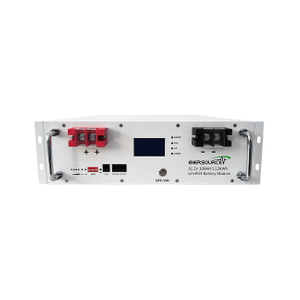

Rack-Mounted Battery 51.2V 100Ah
