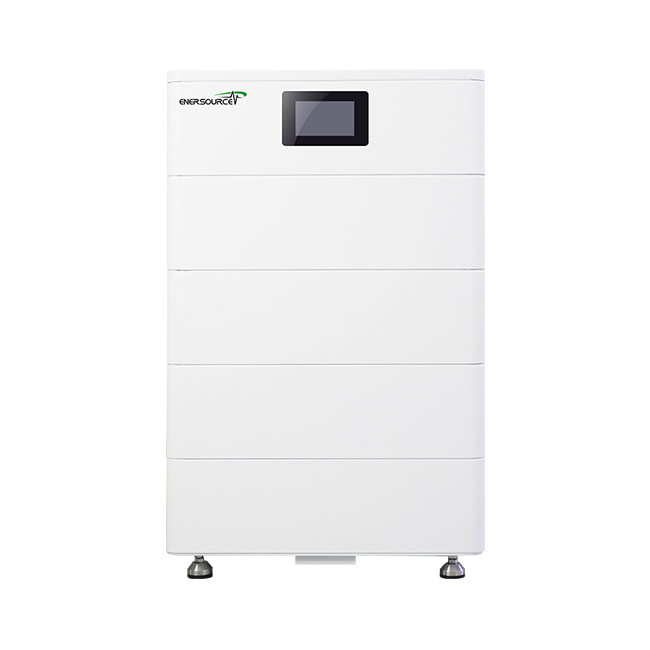

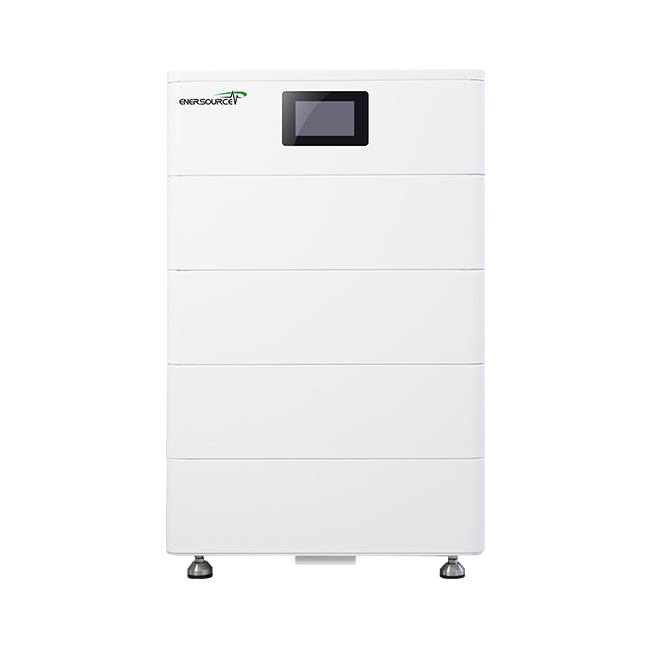

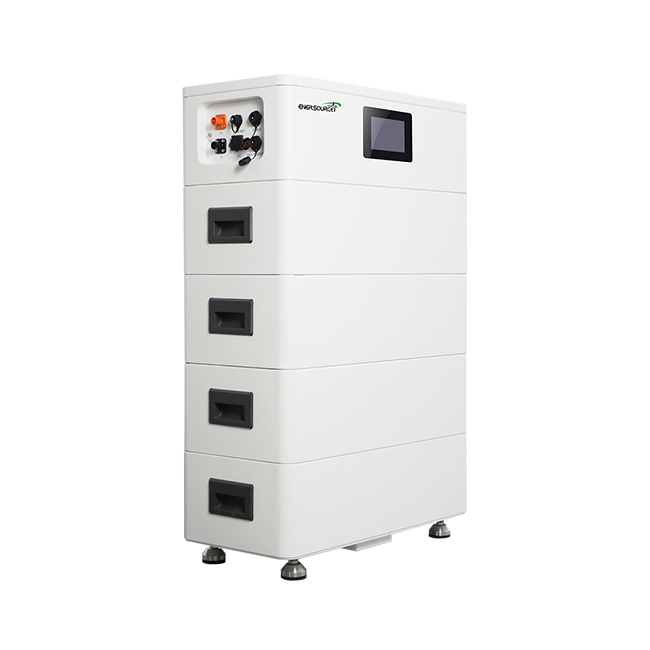

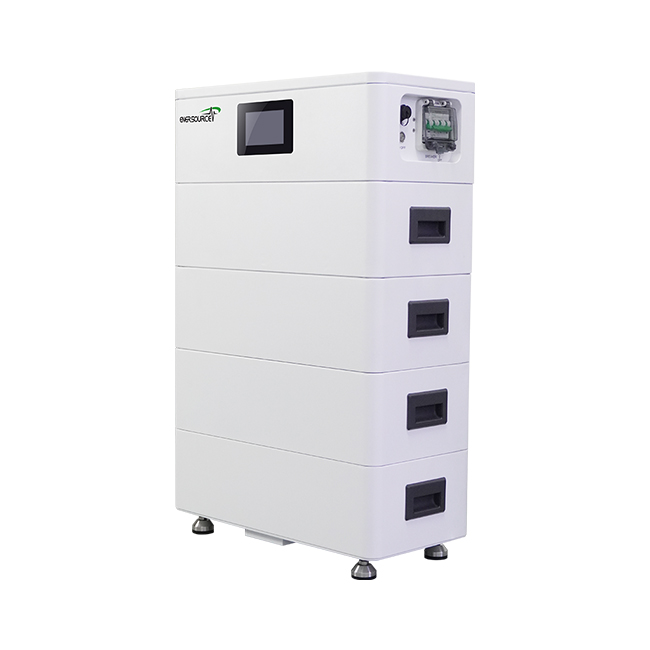

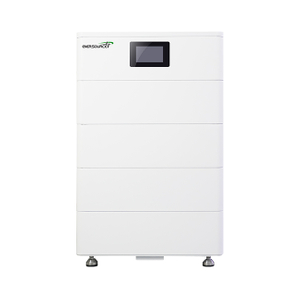

HVSBS2K6-50AH
Enersource
| SYSTEM DEMO |  |  |  |
|
|  |  |
| Model | HVSBS2K6-50AH | ||||||
| Number of modules | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Voltage range | 120-175V | 160-234V | 200-292V | 240-350V | 280-409V | 320-467V | 360-525V |
| Nominal voltage | 153.6V | 204.8V | 256V | 307.2V | 358.4V | 409.6V | 460.8V |
| Nominal capacity | 52AH | 52AH | 52AH | 52AH | 52AH | 52AH | 52AH |
| Energy capacity | 7.987KWH | 10.649KWH | 13.312KWH | 15.974KWH | 18.636KWH | 21.299KWH | 23.961KWH |
| Maximum discharge current | 50A | 50A | 50A | 50A | 50A | 50A | 50A |
| Power controller module | |||||||
| Power system | High-voltage management control system | ||||||
| Display | LCD touch screen | ||||||

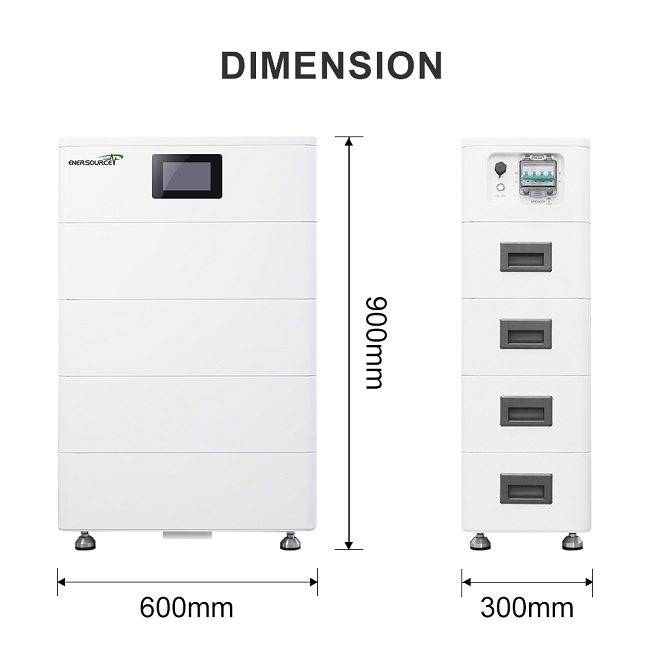

| Power module dimension L*W*H mm/weight KG | 600*300*190/15 | ||||||
| Battery module | |||||||
| Nominal voltage | 51.2V | ||||||
| Nominal capacity | 52Ah | ||||||
| Battery energy | 2.662kWh | ||||||
| Rated charge/discharge current | 50A/1C | ||||||
| Battery chemistry | Lithium Iron Phosphate (LiFePO4) | ||||||
| Battery cell | A grade prismatic cells | ||||||
| Cycle life | ≥6000 cycles 85% DOD | ||||||

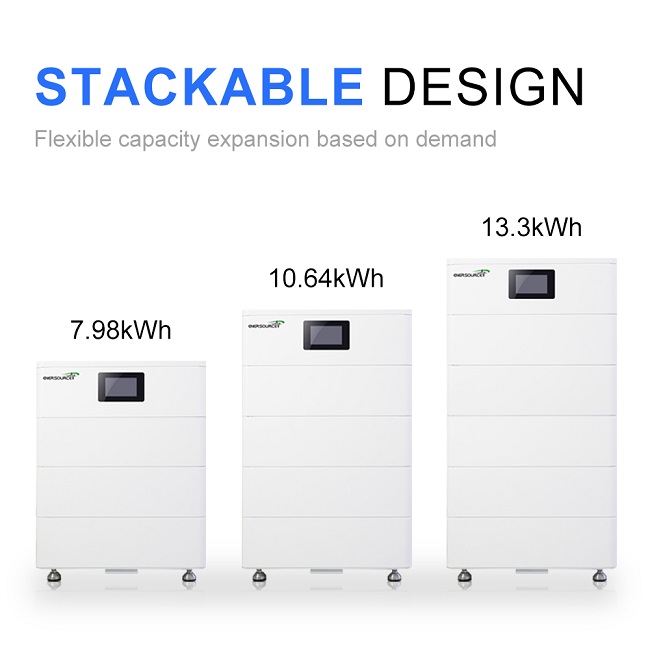

| Energy expansion | Recommend 3-9 modules | ||||||
| Battery module dimension L*W*H mm/weight KG | 600*300*190/31.5 | ||||||
| General data | |||||||
| Round-trip efficiency | ≥96% | ||||||
| Protection | Intelligent BMS | ||||||
| Cooling method | Natural cooling | ||||||
| Operation condition | Charge:0℃~45℃, Discharge:-20℃~60℃, Storage:0℃~40℃, Humidity:≤85% RH | ||||||
| Enclosure protection level | IP65 | ||||||
| Communication | RS485, CAN | ||||||
| Chassis dimension L*W*H mm/weight KG | 600*300*80/5 | ||||||
| Installation method | Cordless stacked | ||||||
| Cell certification | CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3 | ||||||
| Battery certification | CE, UN38.3, MSDS, DG shipping doc. | ||||||
Compatible with Mainstream three-phase hybrid inverters
