HVSBS5K-50AH
Enersource
| SYSTEM DEMO |  |  |   |
|
|  | |
| Model | HVSBS5K-50AH | ||||||
| Number of modules | 2 | 3 | 4 | 5 | 6 | 7 | |
| Voltage range | 160-230V | 240-345V | 320-467V | 400-584V | 480-700V | 560-817V | |
| Nominal voltage | 204.8V | 307.2V | 409.6V | 512V | 614.4V | 716.8V | |
| Nominal capacity | 52AH | 52AH | 52AH | 52AH | 52AH | 52AH | |
| Energy capacity | 10.649KWH | 15.974KWH | 21.299KWH | 26.624KWH | 31.948KWH | 37.273KWH | |
| Maximum discharge current | 50AH | 50AH | 50AH | 50AH | 50AH | 50AH | |
| Power controller module | |||||||
| Power system | High-voltage management control system | ||||||
| Display | LCD touch screen | ||||||
| Power module dimension L*W*H mm/weight KG | 600*420*200/17 | ||||||
| Battery module | |||||||
| Nominal voltage | 102.4V | ||||||
| Nominal capacity | 52Ah | ||||||
| Battery energy | 5.324kWh | ||||||
| Rated charge/discharge current | 50A/1C | ||||||
| Battery chemistry | Lithium Iron Phosphate (LiFePO4) | ||||||
| Battery cell | A grade prismatic cells | ||||||
| Cycle life | ≥6000 cycles 85% DOD | ||||||

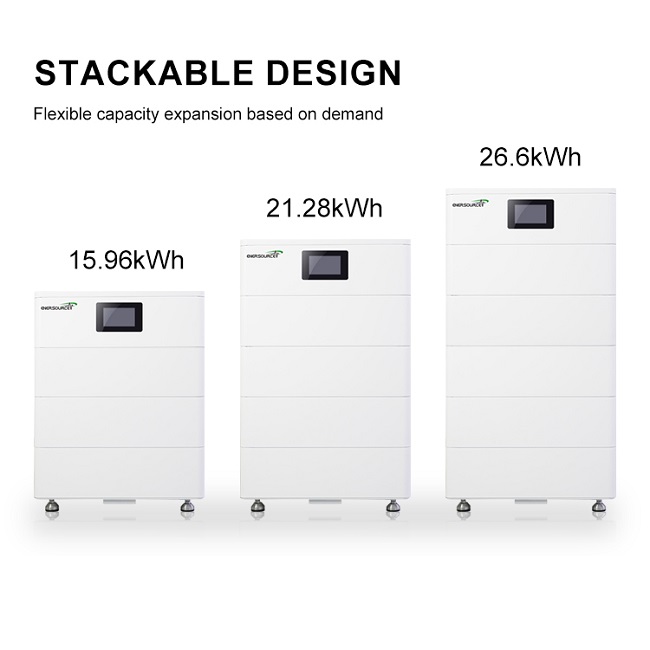

| Energy expansion | Recommend 2-7 modules | ||||||

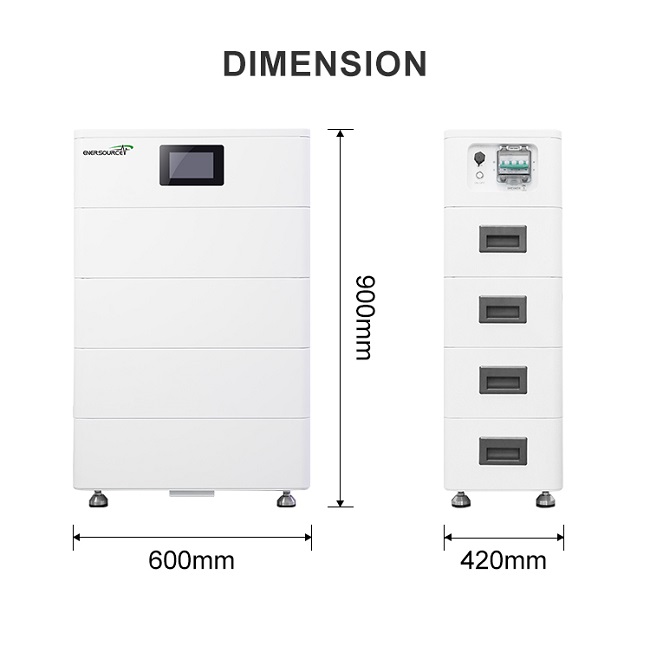

| Battery module dimension L*W*H mm/weight KG | 600*420*200/52 | ||||||
| General data | |||||||
| Round-trip efficiency | ≥96% | ||||||
| Protection | Intelligent BMS | ||||||
| Cooling method | Natural cooling | ||||||
| Operation condition | Charge:0℃~45℃, Discharge:-20℃~60℃, Storage:0℃~40℃, Humidity:≤85% RH | ||||||
| Enclosure protection level | IP65 | ||||||
| Communication | RS485, CAN | ||||||
| Base dimension L*W*H mm/weight KG | 600*420*80/10 | ||||||
| Installation method | Cordless stacked | ||||||
| Cell certification | CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3 | ||||||
| Battery certification | CE, UN38.3, MSDS, DG shipping doc. | ||||||
Compatible with Three-Phase Hybrid Inverters
