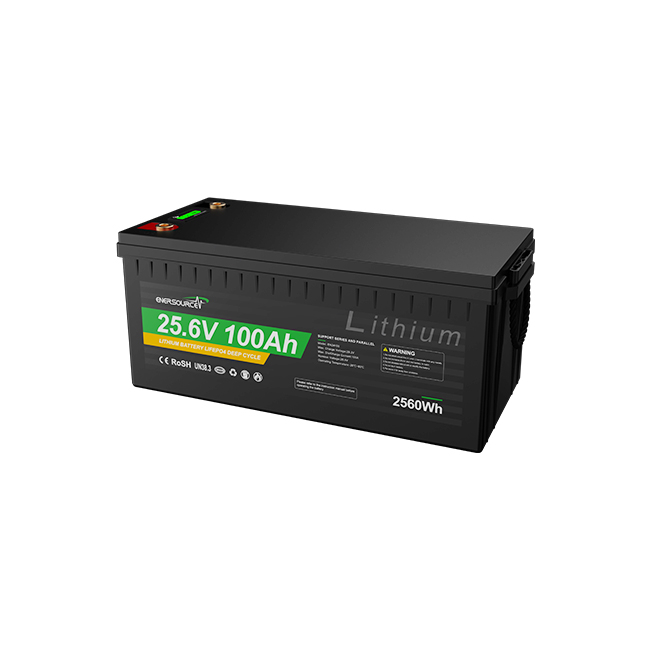

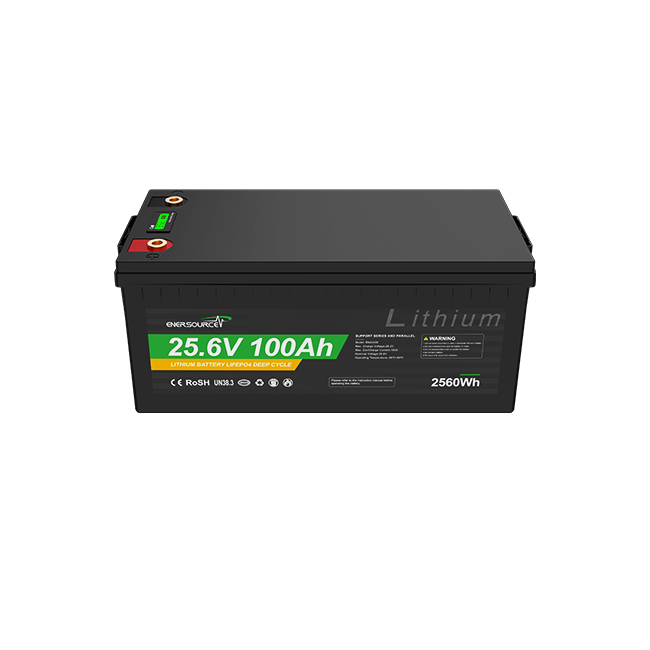

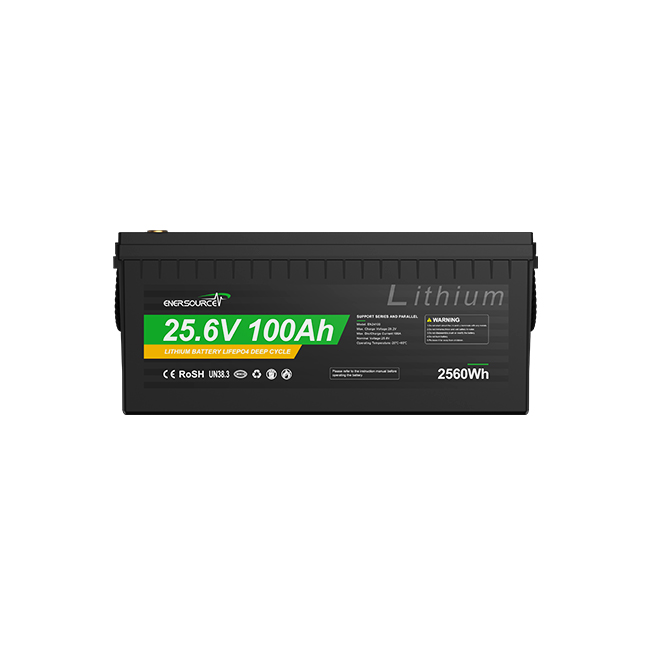

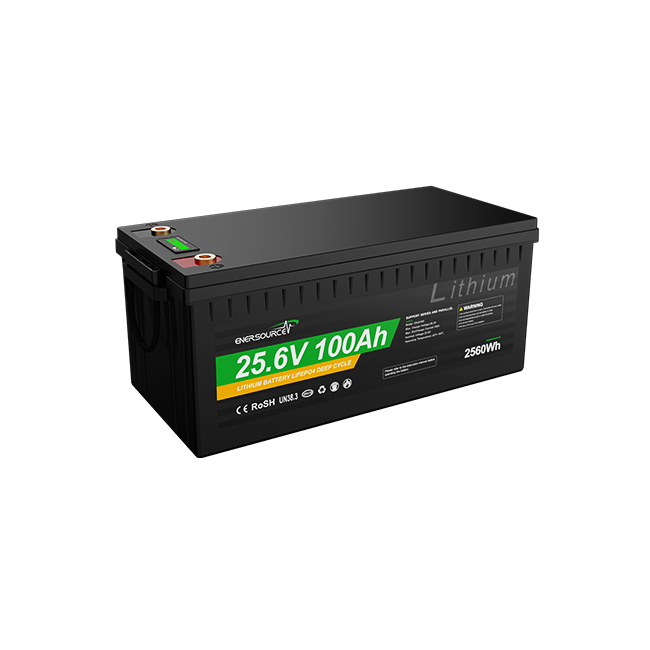

LFP-25100
Enersource
| Model | LFP-25100 | |||||
| Electrical Characteristics | ||||||
| Nominal voltage | 25.6V | |||||
| Nominal capacity | 100Ah | |||||
| Energy | 2560Wh | |||||
| Internal resistance | ≤30mΩ | |||||
| Design lifespan | >15 years | |||||
| Battery chemistry | Lithium Iron Phosphate (LiFePO4) | |||||
| Cycle life | >10000 cycles | |||||
| Months self discharge | <3% | |||||
| Efficiency of charge | 100% @0.2C | |||||
| Efficiency of discharge | 96~99% @1C | |||||
| Charge Data | ||||||
| Charge voltage | 29.2V±1V | |||||
| Charge mode | CC@0.2C to 29.2V, then CV till current to 0.05C | |||||
| Standard charge current | 20A | |||||
| Max. charge current | 100A | |||||
| Charge cut-off voltage | 29.2V±1V | |||||
| Discharge Data | ||||||
| Max. discharge current | 100Ah | |||||
| Discharge cut-off voltage | 20V±1V | |||||
| Working Condition | ||||||
| Charge temperature | 0℃ to 45℃ (32F to 113F) @60±25% Relative Humidity | |||||
| Discharge temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage temperature | 0℃ to 40℃ (-4F to 104F) @60±25% Relative Humidity | |||||
| Mechanical Data | ||||||
| Optional feature | LCD Screen, Bluetooth & App, Pre-heating (optional) | |||||
| Terminal | M8 screw (others) | |||||
| BMS | OVP, UVP, OCP, SCP, OTP, UTP, etc. | |||||
| Case | ABS | |||||
| Enclosure protection level | IP65 | |||||

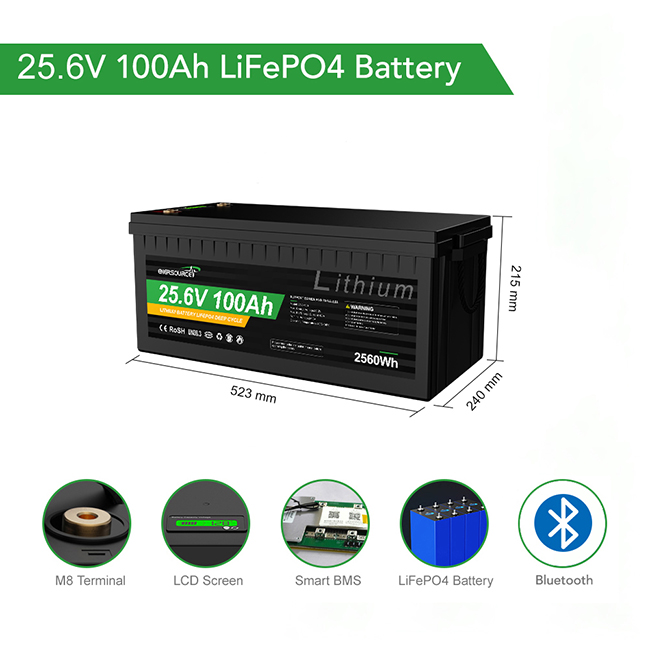

| Dimensions W*D*H (mm) | 523*240*215 | |||||
| Weight (KG) | 18 | |||||
| Cell certification | CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3 | |||||
| Battery certification | CE, UN38.3, MSDS, DG shipping doc. | |||||
