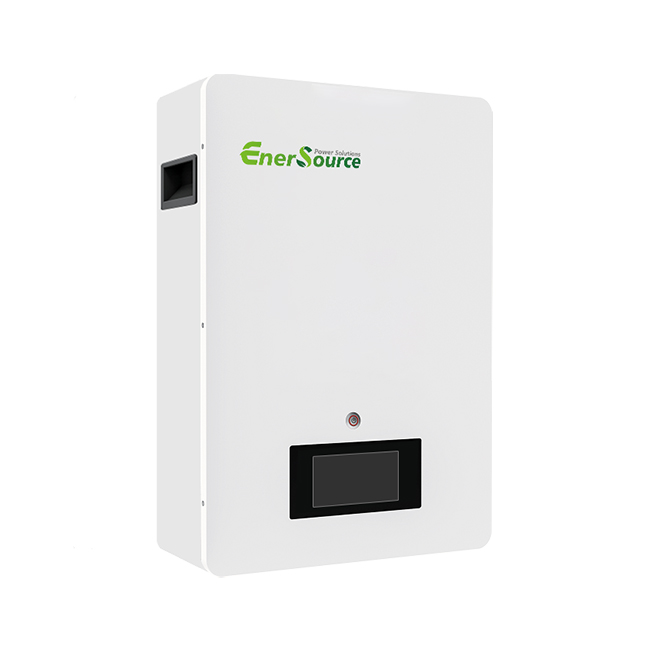

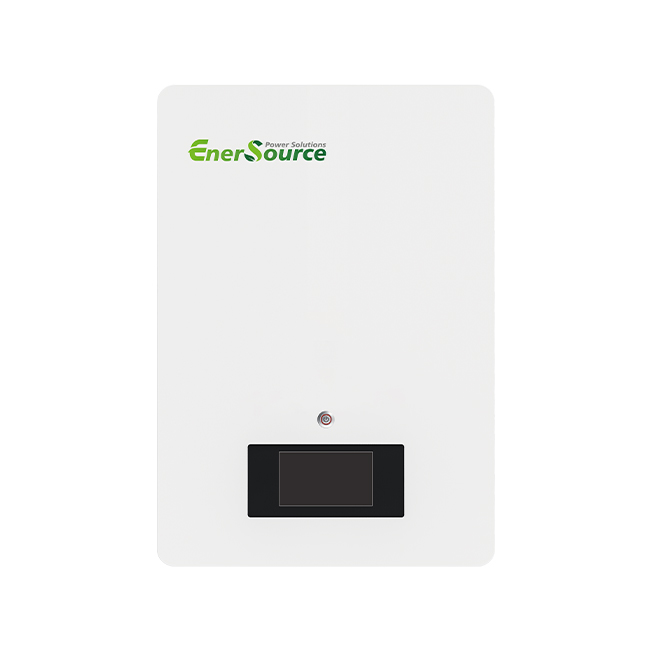

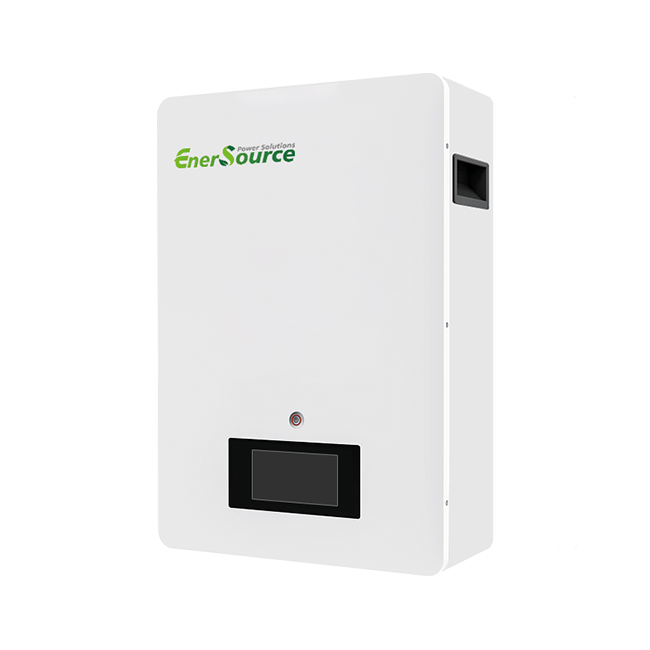

Wall-Mounted Battery PRO 51.2V 100Ah

Wall-mounted battery is the best choice for home solar storage! High-end elegant design and more space efficient than all standard battery modules.

Features：

Super long 5 years warranty
High quality lithium iron phosphate battery
Big capacity with small volume for household
≥10000 times deep cycle charge and discharge
Built-in smart BMS provides multiple protections
Support 15 units in parallel for more energy
Compatible with mainstream inverters


Availability:



Inquire

Model:
EN-PRO-51100
Brand:
Enersource

Model	EN-PRO-51100
Battery Energy	5.12kWh
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Max. Charge Current	100A
Max. Discharge Current	100A
Charging Cut-off Voltage	58.4V
Discharging Cut-off Voltage	40V
Battery Type	LiFePO4
Scalability	Up to 15 units in parallel
Terminal	Surlok/M8
Case Material	Metal Case
Communication Mode	CAN/RS485/RS232/Bluetooth/WiFi
Charging Temperature Range	0~55℃
Discharging Temperature Range	-20~60℃
Cycle Life	≥10000 Cycles
Design Lifespan	15~20 Years
Ingress Protection	IP54
Display	3.5" LCD touch screen
Protection	Built-in smart BMS, Fuse
Installation Method	Wall-Mounted
Dimensions(LWH)mm	435160588
Weight	53KG
Cell Certification	CE, UL, IEC 62109-1&-2, IEC 62477, EN61000, UN38.3
Battery Certification	CE, UN38.3, MSDS, DG shipping doc.
